Hydraulic – Square Drive

ICEAVANTIMXTEDGE


ICE

  • Torque and Tension
  • Increased Safety with Hands Free Option
  • Simultaneous Bolting
  • In-Line Reaction
  • 3-d Uniswivel Design
  • Automatic 2nd-pawl release
Hytorc ICE



Hytorc ICE-Dimensional-Drawing

HYTORC ICEICE-1ICE-3ICE-5
TORQUE-min (ft.lbs)200450800
TORQUE-max (ft.lbs)1,2752,9505,200
SQ (inch)0.7511.5
R1 (inch)1.251.51.86
R2 (inch)2.533.27
D (inch)1.251.852.48
W (inch)2.252.893.39
X (inch)1.3752.052.47
L (inch)4.55.556.45
H1 (inch)5.56.557.6
H2 (inch)44.915.95
TORQUE CONVERSION CHARTpdfpdfpdf


RETURN TO TOP


AVANTI

  • Torque and Tension
  • Increased Safety with Hands Free Option
  • Simultaneous Bolting
  • In-Line Reaction

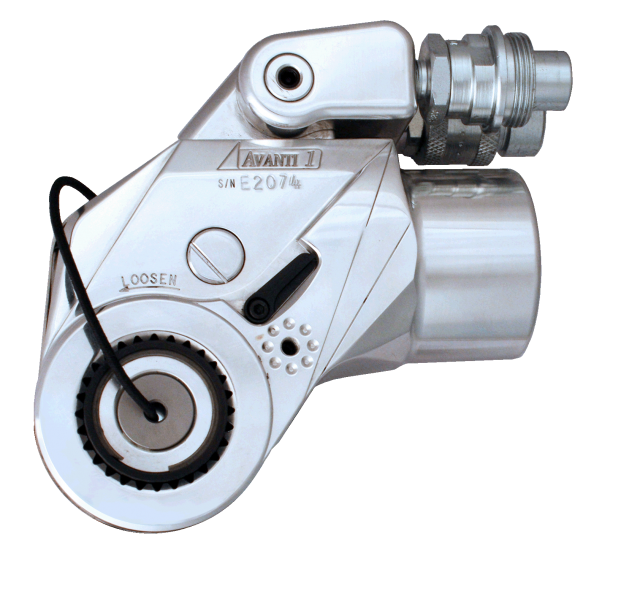

Hytortc AVANTI

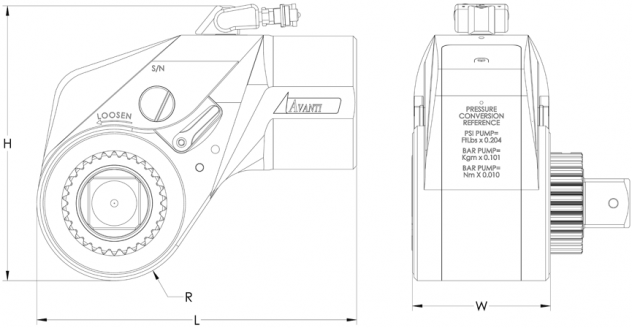

AVANTI-Dimensional-Drawing

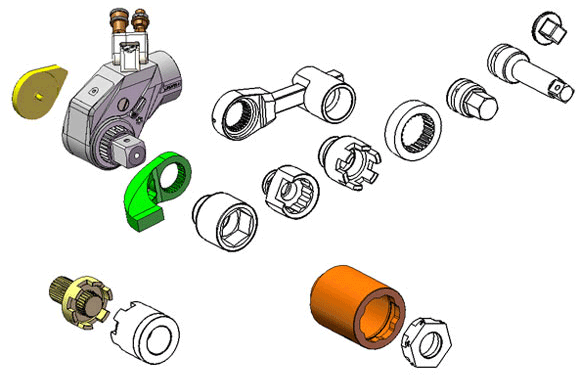

AVANTI exploded

HYTORC AVANTIAV-.7AV-1AV-3AV-5AV-8AV-10AV-20AV-35AV-50AV-80AV-130
TORQUE-min (ft.lbs)1151934458041,1641,7612,7604,7757,20212,73819,395
TORQUE-max (ft.lbs)7671,2842,9695,3607,76011,74317,89031,83046,12684,921138,510
BOLT LOAD-max (lbs)61,00090,000117,000231,000326,000360,000565,000789,000980,0001,200,0001,500,000
SQUARE DRIVE (inch)3/43/411-1/21-1/21-1/22-1/22-1/22-1/23-1/23-1/2
TORQUE ACCURACY (%)±2.5±2.5±2.5±2.5±2.5±2.5±2.5±2.5±2.5±2.5±2.5
BOLT LOAD-
Accuracy Clamp (%)
±5.0±5.0±5.0±5.0±5.0±5.0±5.0±5.0±5.0±5.0±5.0
WEIGHT
without DRIVE (lbs)
3.14.59.4515.620.7529.247.782.75125.7280.5585
WIDTH (inch)1.792.182.93.383.864.355.076.517.047.498.5
HEIGHT (inch)4.214.926.317.418.389.2910.2612.3314.0316.8420.14
LENGTH (inch)4.145.046.537.868.839.9211.6414.3116.319.5222.73
RADIUS (inch).991.131.501.862.072.382.603.193.954.695.31
TORQUE CONVERSION CHARTpdfpdfpdfpdfpdfpdfpdfpdfpdfpdfpdf


RETURN TO TOP


MXT

  • One-Way Ratchet
  • 24-degree nut turn per stroke
  • Ideal for high torque or loosening of highly corroded fasteners
  • Designed for heavy use

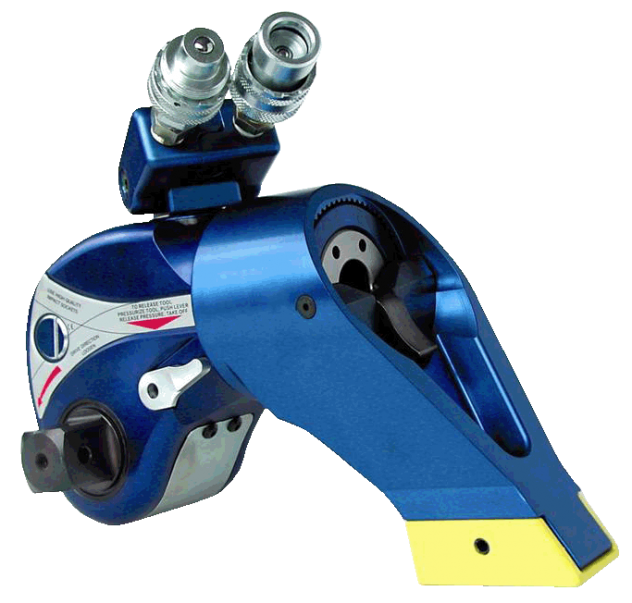

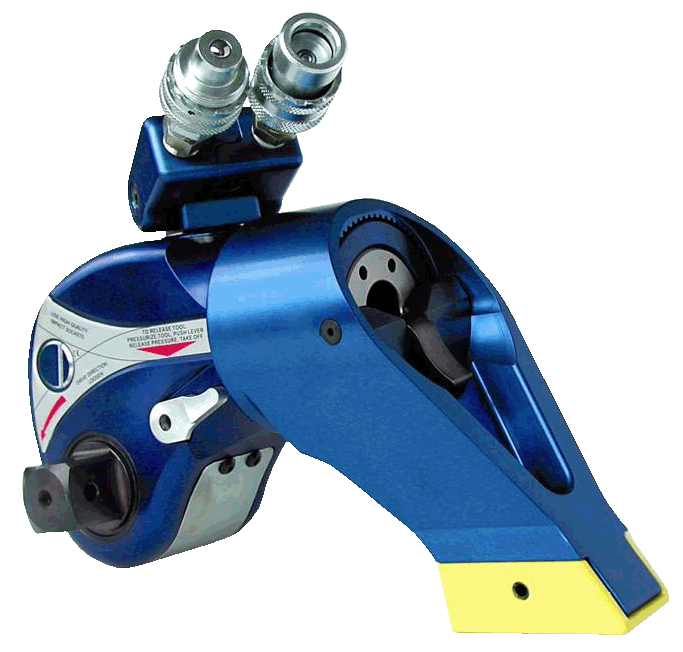

 Hytorc MXT Hydraulic Square Drive

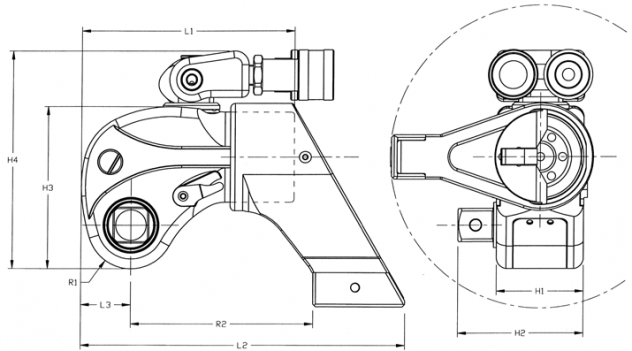

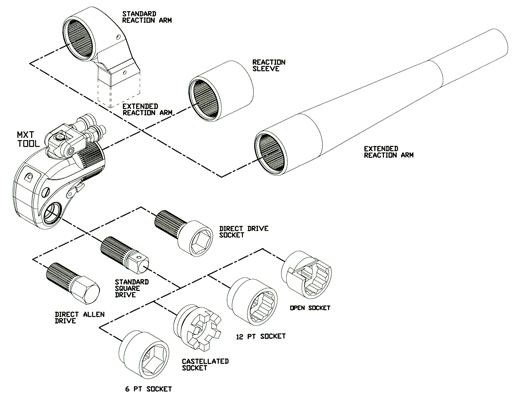

Hytorc MXT Dimensional DrawingHytorc MXT exploded view

MXT.7 MXT1 MXT3 MXT5 MXT10 MXT20 MXT35 MXT
TORQUE-min (ft.lbs)1182004808351,7552,96037,100
TORQUE-max (ft.lbs)8221,3403,2305,59011,52019,76037,100
SQUARE DRIVE (inch)3/43/411-1/21-1/22-1/22-1/2
TORQUE ACCURACY (%)±3±3±3±3±3±3±3
TOOL WEIGHT (lbs)3.004.454.4516.7529.5051.5096.05
LENGTH 1 (inch)3.964.8136.2887.509.43811.2513.914
LENGTH 2 (inch)5.987.029.59111.2214.01117.5021.22
LENGTH 3 (inch)0.931.091.4541.752.1712.253.216
HEIGHT 1 (inch)2.531.9762.633.003.954.7335.82
HEIGHT 2 (inch)3.002.833.8934.8635.867.1258.615
HEIGHT 3 (inch)4.293.6254.9275.757.848.81310.903
RADIUS 1 (inch)0.810.981.1311.561.952.602.90
RADIUS 2 (inch)3.323.855.336.157.6910.2516.68
TORQUE CONVERSION CHARTpdfpdfpdfpdfpdfpdfpdf


RETURN TO TOP


EDGE

  • Three-Moving Part Technology
  • 360-degree reaction arm
  • Uniswivel
  • 360 degree x 180 degree swivel for operator convenience

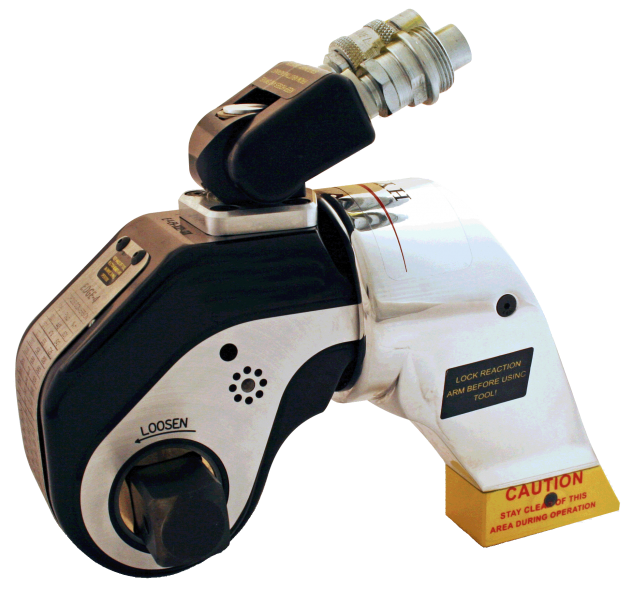

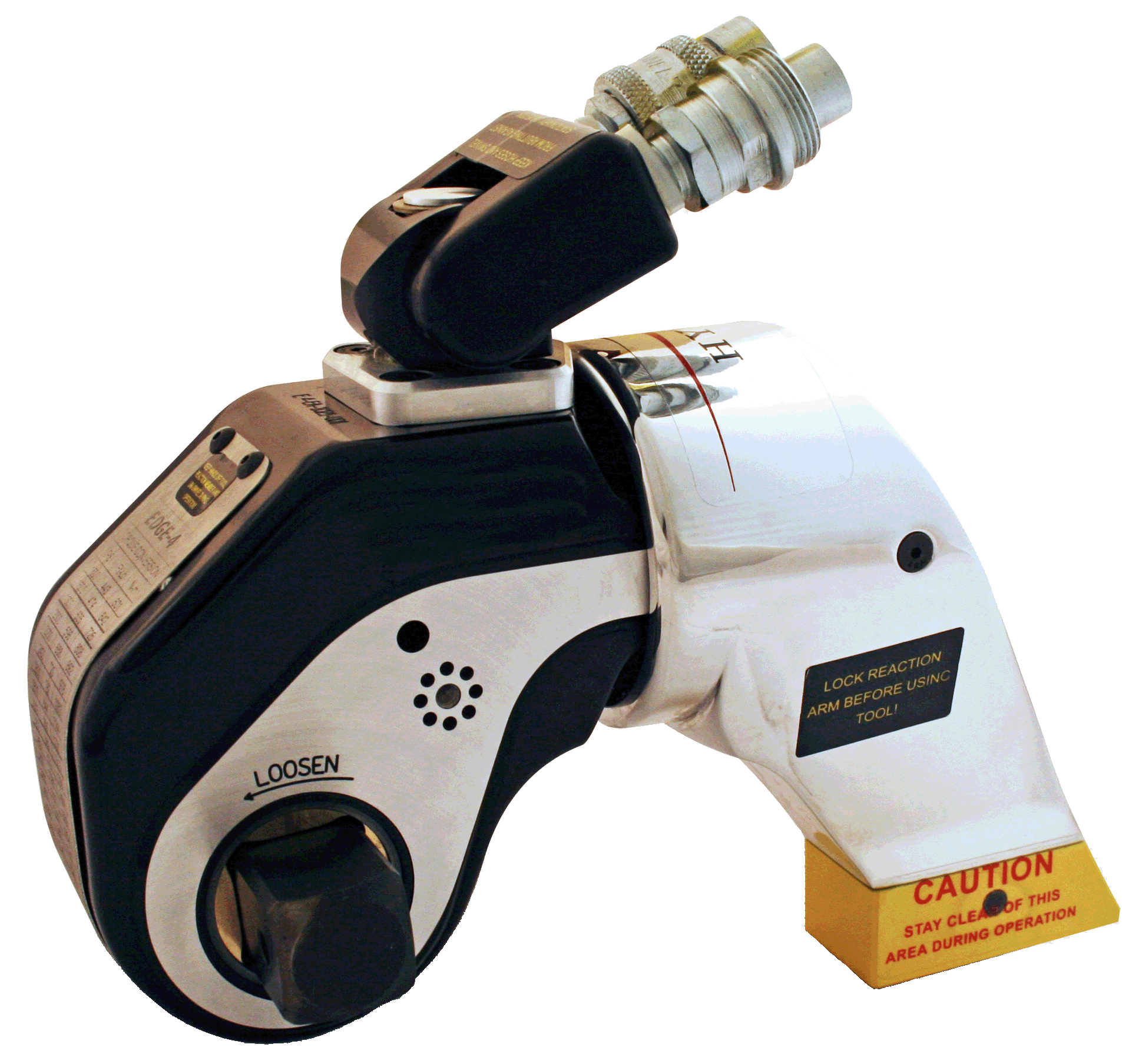

EDGE

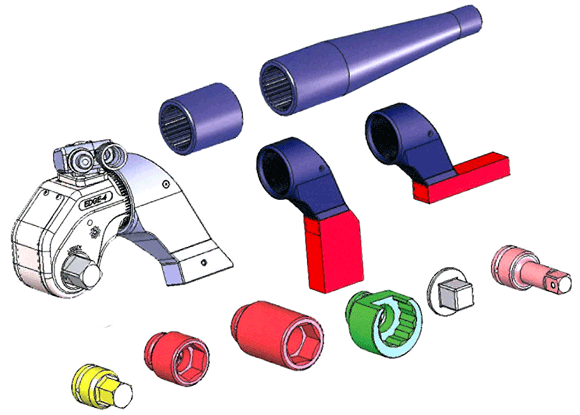

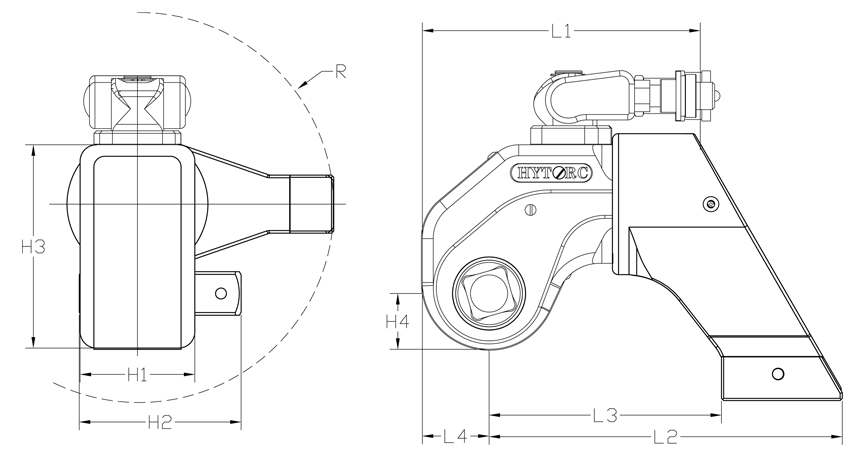

EDGE-mechanicalEDGE-Torque-Wrench-Exploded-View

EDGEEDGE-2EDGE-4EDGE-8EDGE-12EDGE-30
TORQUE-min (ft.lbs)1784431,2301,6504,448
TORQUE-max (ft.lbs)1,2503,0808,55511,00029,650
SQUARE DRIVE (inch)3/411-1/21-1/22-1/2
TORQUE CONVERSION CHARTpdfpdfpdfpdfpdf
